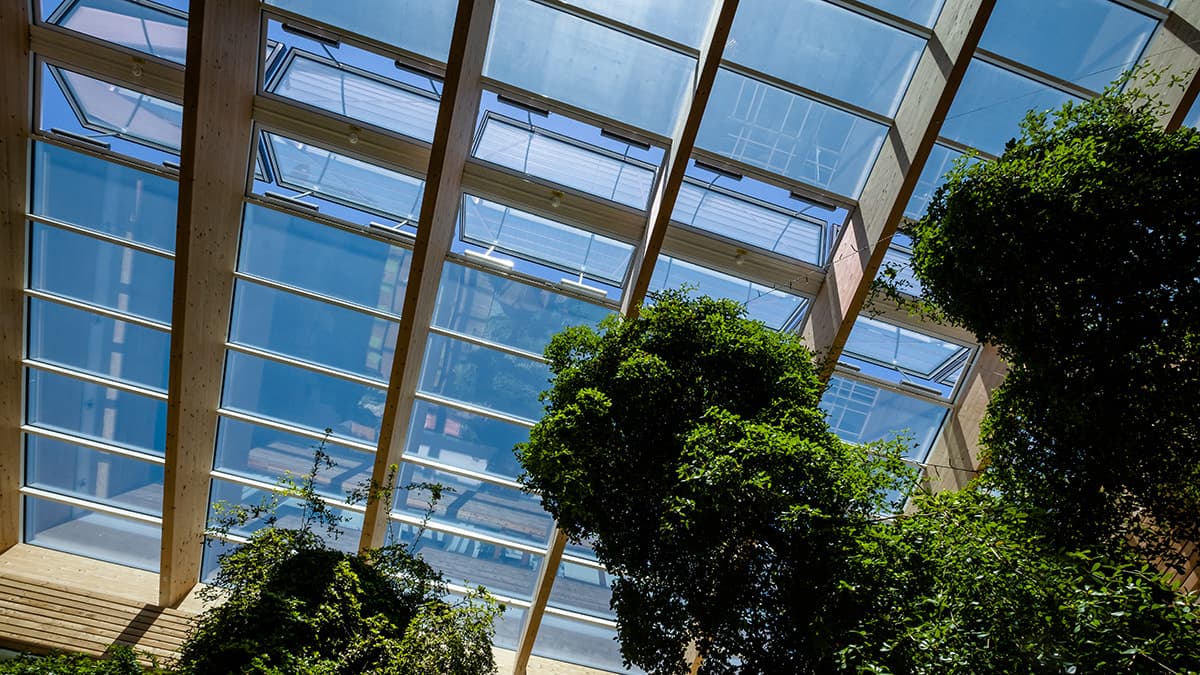

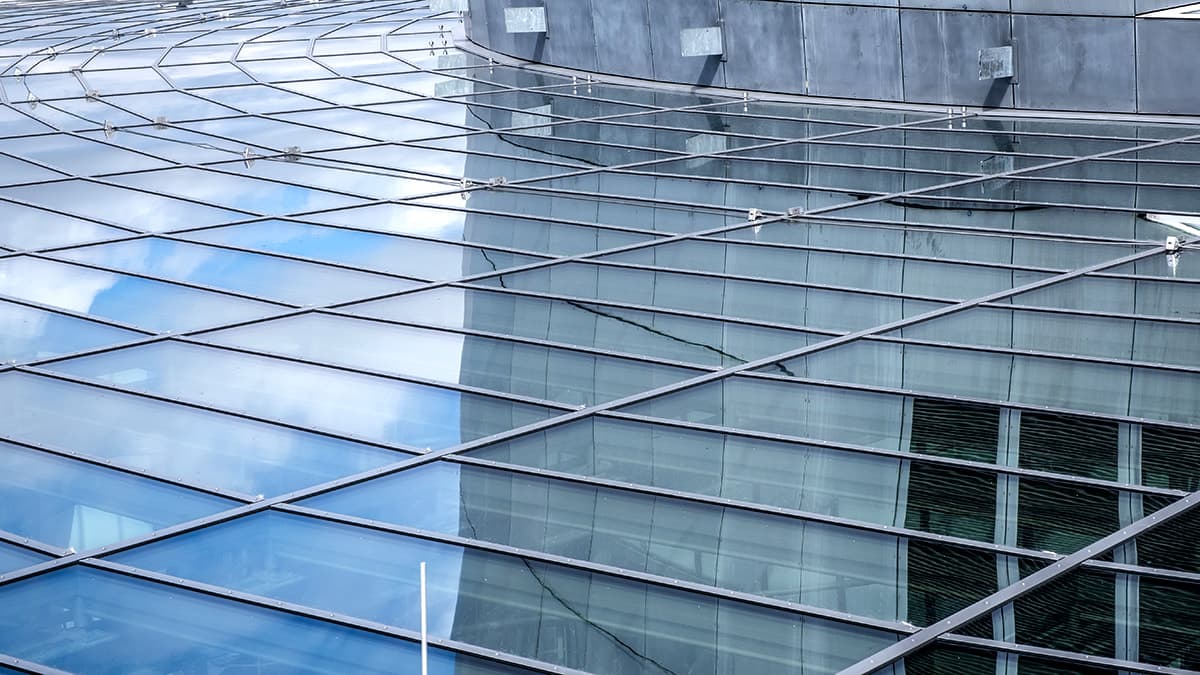

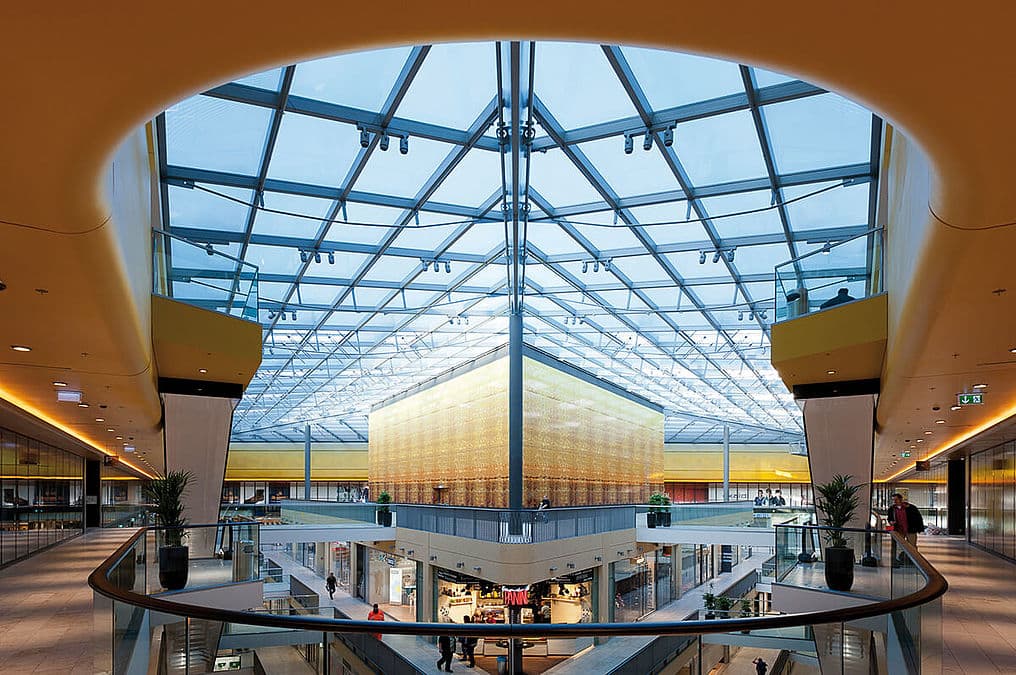

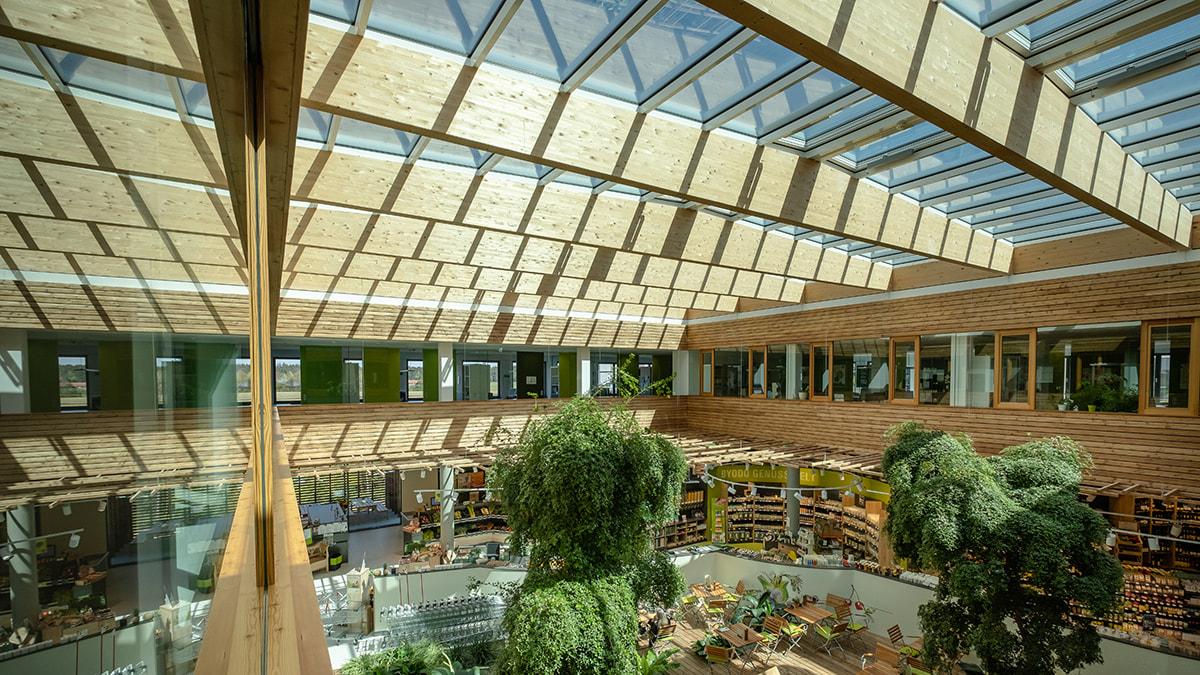

Glass roof – mullion-and-transom glass structure

LAMILUX CI glass roof system – an architectural glass structure system pr60

OPTIMISED SEALING AND DRAINAGE SYSTEM

• Effective ventilation of the glazing channels and controlled drainage of water and condensation
• Overlapping sealing system, designed in multiple stages without direct contact at the inner sealing level, with secondary water drainage
• Contact-free, continuous drainage level for mullions/rafter
• Increase and thus optimisation of the surface temperature at the glass edge to minimise the risk of condensation
• Innovative drainage

ACTIVE ENERGY MANAGEMENT

• Reducing heat loss in the frame structure
• Integration of the CI system M ventilation sash: a proven system (CE-compliant) in accordance with DIN EN 14351-1 (tightness in heavy rain, air permeability, wind resistance, sound insulation, thermal insulation, total energy transmittance, light transmittance)
• Daylight + photovoltaic system – an elegant combination in gable structures utilising northern light
• Simplified environmental assessment: A comprehensive environmental product declaration (EPD) in accordance with ISO 14025 and EN 15804 (EPD module A1-D) is available for the CI system’s PR60 architectural glass structure system

SAFETY AND NATURAL VENTILATION AND HEAT EXTRACTION SYSTEMS (NRWG)

• General building inspection certificate for the system
• The system bears the DVS quality mark and is certified in accordance with DIN EN 1090-3
• Fire protection and sound insulation (up to 46 dB in accordance with EN 10140-2): Sandwich panels (trapezoidal profiles) with a mineral core insulation layer; the roof and wall panel meets the requirements of building material class A2
• Integration of CI system M smoke extraction: certified smoke and heat exhaust system in accordance with EN 12101-2
• Option to integrate control technology
