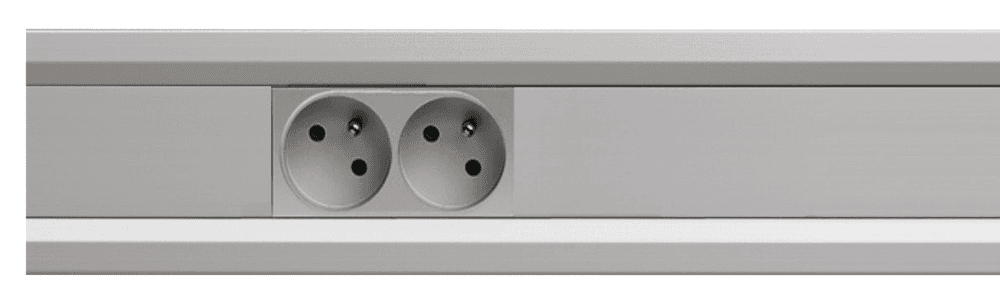

tehalit.GBA Aluminium duct systems for 45 mm fittings

tehalit.GBA Aluminium electrical conduit system

• Installation method for 45 x 45 mm devices – snap-fit, direct mounting of fittings.
• 3-compartment system, separate power and data cables.
• Cover and base supplied separately.
• Excellent compatibility with 45 x 45 mm accessories.
• Cover opens with a screwdriver.
• Base profile is non-perforated.
• Due to the manufacturing process, there may be slight colour variations from the RAL colour chart.
• Other RAL colours available to order.

Colour

• RAL 9010, white
• ALU (aluminium finish), anodised aluminium
• ALU (PC-ABS), painted aluminium colour

Material

• Aluminium

Length supplied

• Standard 2000 mm (custom lengths up to 6000 mm available on request)
• Delivery form: Lid and base ordered separately

Operating temperature

• -5°C to +90°C

Degree of protection

• IP40 / IK08

Polyamide screws

• L=23 mm, Ø=6 mm, for installing ducts on plasterboard walls.

Tips

• The earthing regulations must be observed.
• Check the continuity of the required equipotential bonding connections
• after installation is complete.
