BIM for the Porotherm system

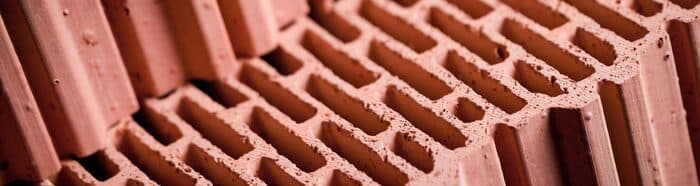

Porotherm ceramic blocks and accessories

Porotherm is a comprehensive solution for the design and construction of building walls, lintels and ceilings. It comprises ceramic blocks for external and internal load-bearing walls and partition walls, mortar for joining them, ceramic lintels, and ceiling beams and blocks.

Porotherm Hollow Block Catalogue

Porotherm Accessories Catalogue

Find out how to work with predefined BIM objects for the Porotherm system

Find out how to use files containing BIM data for the Porotherm system.

Designing walls in Revit – predefined BIM objects

In this video, you will learn how to design walls in Revit using predefined BIM object files for the Porotherm system:

• importing a predefined BIM object template
• adding a sketch
• inserting wall axes
• inserting walls
• inserting ventilation ducts
• generating parametric and material schedules
• inserting reinforced concrete columns in walls using Porotherm 25 K P+W

Designing lintels in Revit – predefined BIM objects

In this video, you will learn how to design Porotherm lintels in Revit using predefined BIM object files for the Porotherm system:

• fitting lintels above windows
• inserting lintels at door openings
• generating lists of Porotherm lintels

Designing windows and doors in Revit – predefined BIM objects

In this video, you will learn how to design windows and doors in Revit using predefined BIM object files for the Porotherm system:

• window design
• door design

Designing ring beams using ring beam components in Revit – predefined BIM objects

In this video, you will learn how to design ring beams using Porotherm ring beam blocks in Revit, using predefined BIM object files for the Porotherm system:

• designing ring beams
• use of Porotherm ring course blocks
