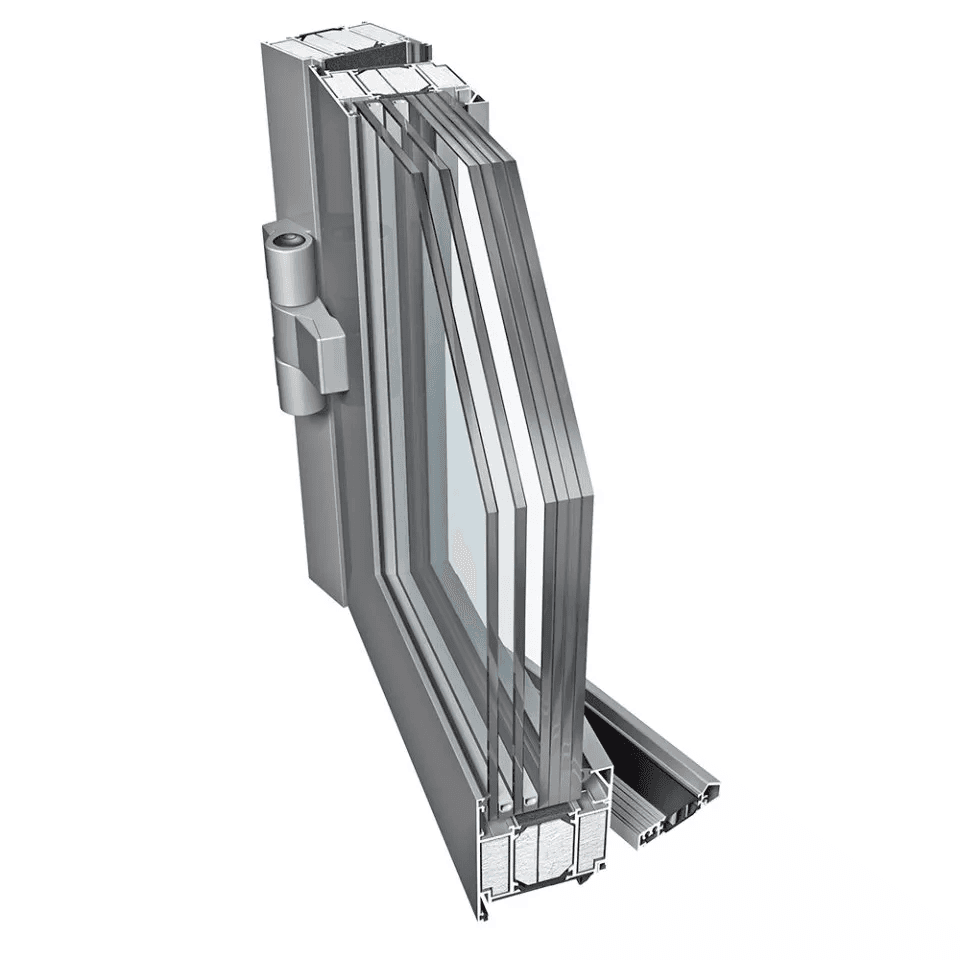

PROCURAL PE78EI doors for external structures

Characteristics

A system with a three-chamber design, intended for use in internal or external fire partitions.

Characteristics

• an innovative glazing method using a glazing bead on one side – on the other side, the glass surface can form an almost seamless surface with the sash
• shorter production and installation times than with double-glazing products
• convenient glazing installation using pressure clamps
• protection against the fire-retardant tape coming loose through installation in a rebate
• many door leaf design options
• possibility of manufacturing large-scale structures
• smoke-tight designs possible
• can be combined with other EI30 and EI90 fire-rated systems by using the same 78 mm profile depth
• possibility of combining with EI120 fire-rated systems by using adapter profiles
• possibility of manufacturing internal and external doors for exits and escape routes
• solution covered by the current Fire Resistance Classification, National Technical Assessment and Classification Report


Technical specifications

EN AW-6060 aluminium
profiles in accordance with PN-EN 573-3, T66 temper in accordance with PN-EN 515

Frame
depth: 78 mm

Sash
depth: 78 mm

Single-glazed units
with fire-resistant properties, insulating glass units: PN-EN 1279-1, PN - EN 1279-5, opaque panels: in accordance with the National Technical Assessment, Fire Resistance Classification or Classification Reports 20–62 mm

Sound
insulation with 17 mm thick single glazing, with fire-resistant properties: RA1 rating – 35 dB, RA2 rating – 35 dB, RW rating – 37 dB

Smoke-tightness
classes Sa and S200 in accordance with PN-EN 13501-2

National Technical
Assessment ITB-KOT-2017/0351 - "Internal fire-resistant and/or smoke-proof doors, fire-resistant windows and a set of products for constructing fire-resistant internal and external walls of the PROCURAL PE78EI system made of aluminium profiles with a thermal break"

Approvals and quality
certificates: Classification reports for external doors certified in accordance with PN-EN 16034 and PN EN 14351-1+A2
