Profiles for the SL1600 sliding system | PROCURAL

Characteristics

A thermally insulated lift-and-slide system designed for use in external cladding.

• the ability to produce large-scale structures, with up to 8 panels
• high weather resistance
• option to use automatic operators

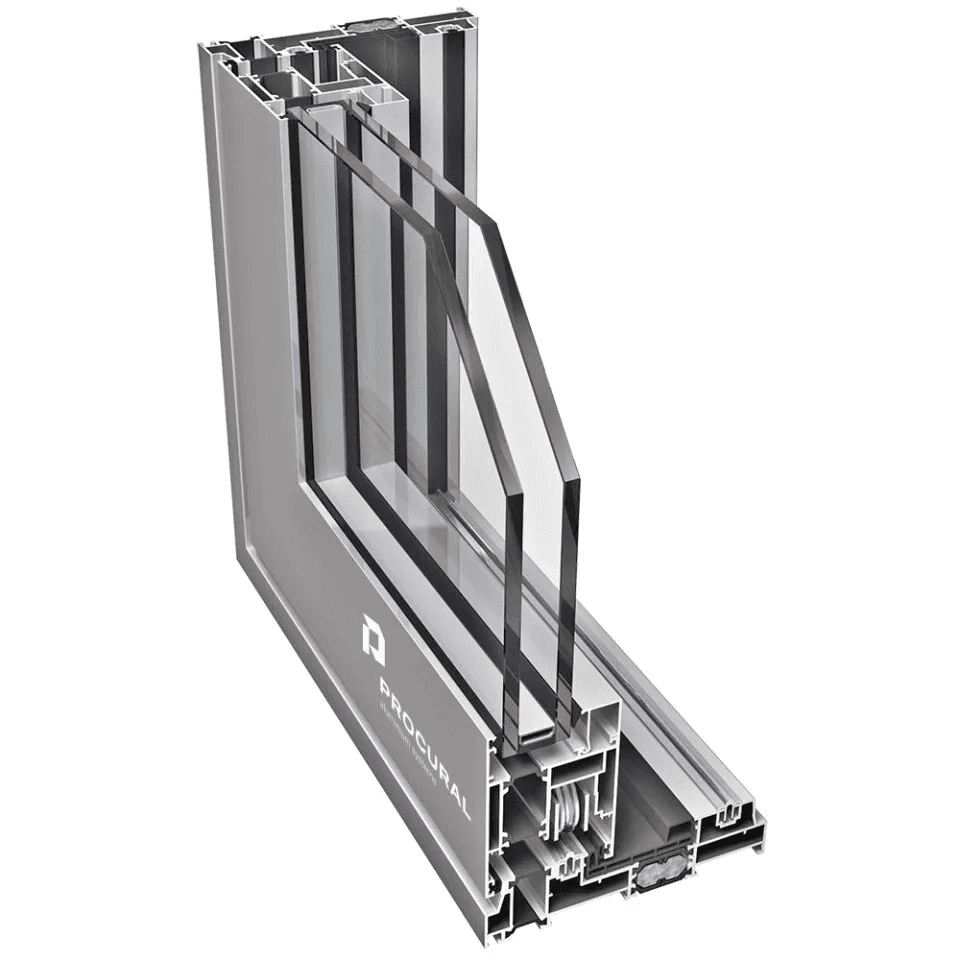

• corner connection with a movable mullion
• option to manufacture doors with a low threshold – no architectural barriers
• various thermal insulation options, depending on the insulation inserts used: SL1600tt, SL1600tt+, SL1600ttHI, SL1600ttSHI

Technical specifications

Aluminium
profiles made from EN AW-6060 aluminium alloy, PN-EN 573-3, T66 condition, in accordance with PN-EN 515, and meeting the requirements of PN-EN 12020-1

Seals
made of EPDM synthetic rubber in accordance with PN-EN 12365-1 and TPE in accordance with DIN 16941R3

Frame
depth: 160/154 mm for a two-track system, 247/241 mm for a three-track system

Sash
depth: 67 mm

Maximum door leaf
dimensions: L 3300 x H 3000 mm, L 2300 x H 3500 mm

Maximum sash
weight: 300/400 kg

Insulated
glass units or other glazing, thickness: 12–49 mm

Air
permeability class 4

Water resistance
class 9A

Wind
resistance class C3/B5

Thermal
insulation: Uf from 2.3 W/m²K, Uw = 1.1 W/m²K (L 2400 x H 2400 mm, Ug = 0.5 W/m²K, double-chamber glazing).

Surface
finishing options: Powder coating with polyester paints meeting Qualicoat requirements, with a choice of colours from the RAL palette; natural and coloured anodising – meeting Qualanod requirements; wood-effect varnish – the surface finish meets high anti-corrosion requirements.

Burglary
resistance class RC2 in accordance with PN-EN 1627

Approvals and quality
certificates for initial type testing in accordance with PN-EN 14351-1 + A1
