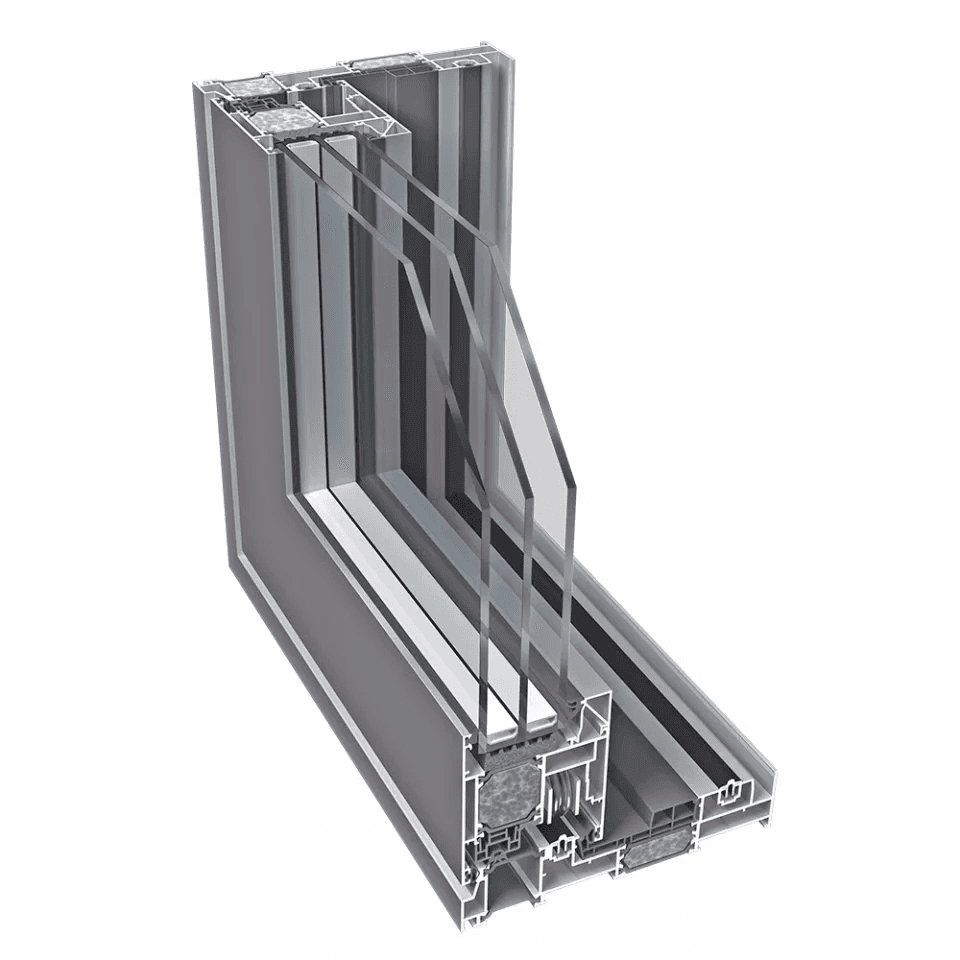

Profiles for the SL1800 sliding system

Characteristics

Thermally insulated lift-and-slide system.

• Thanks to the use of a wider thermal break, deeper sashes and the option of using thicker glazing of up to 61 mm, we achieve better thermal performance of less than Uw < 0.9 W/m²K
• the ability to construct large-scale designs, even with up to 6 sashes
• high weather resistance
• thermal variants: SL1800TT, SL1800TT+, SL1800TT HI, SL1800TT SHI
• large sash dimensions up to: LxH 3300x3000 mm or 2300x3500 mm

Technical specifications

Aluminium
profiles made from EN AW-6060 aluminium alloy, PN-EN 573-3, T66 condition, in accordance with PN-EN 515, and meeting the requirements of PN-EN 12020-1

Seals
made of EPDM synthetic rubber in accordance with PN-EN 12365-1 and TPE in accordance with DIN 16941R3

Frame
depth: 184/178 mm (double-track), 283/277 mm (triple-track)

Sash
depth: 79 mm

Maximum door leaf
dimensions: L 3300 x H 3000 mm, L 2300 x H 3500 mm

Maximum door leaf
weight: 400 kg

Double-glazed units
, glazing thickness: 14–61 mm

Air
permeability class 4

Water resistance
class E900

Thermal
insulation: Uf from 1.3 W/m²K, Uw < 0.9 W/m²K (L 2400 x H 2400 mm, Ug = 0.5 W/m²K, double-chamber glazing)

Surface
finishing options: Powder coating with polyester paints meeting Qualicoat requirements, with a choice of colours from the RAL palette; natural and coloured anodising – meeting Qualanod requirements; wood-effect varnish – the surface finish meets high anti-corrosion requirements.

Approvals and type test certificates in accordance
with PN-EN 14351-1 + A2
