AC-62 window and door systems

AC-62 window and door system

Application:

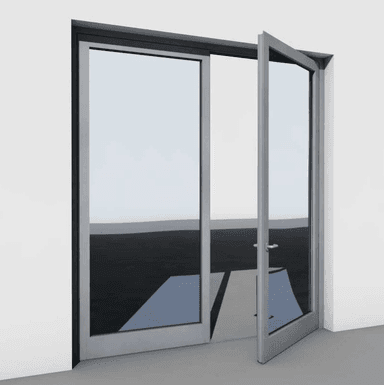

The Morad AC-62 system is an insulated aluminium system designed for the construction of external windows, doors and display units. It enables a variety of solutions, such as sliding and automatic doors, inward- and outward-opening windows, as well as pivoting, folding and curved structures.

Construction and technical specifications:
Profile depth:
• Frame: 62 mm•
Window sash: 70 mm•
Thermal insulation: Heat transfer coefficient Uw from 1.14 W/(m²K)
• Sound insulation: Rw = 33 dB•
Wind load resistance:
C5• Watertightness: E1500

Maximum dimensions:
• Single-leaf door: width 1410 mm, height 2567 mm•
Window: width 1487 mm, height 2589 mm

The AC-62 system profiles consist of two aluminium components joined by a thermal break, ensuring excellent strength and thermal performance. The profiles are extruded from EN AW-6060 alloy in accordance with standard PN-EN 573-3:2009, and the dimensional and shape tolerances meet the requirements of standard PN-EN 12020-2:2001.

Installation:
The AC-62 system offers flexibility in design and installation thanks to its compatibility with other Morad systems. A range of fittings and accessories is available, allowing the structure to be tailored to individual requirements. The precision manufacture of the profiles and the use of appropriate seals guarantee a high level of airtightness and durability of the structure.

Colour options:
Aluminium profiles can be powder-coated in any colour from the RAL colour chart, allowing the appearance of the structure to be matched to the building’s aesthetic. Anodised versions are also available, providing additional surface protection.

Applications in construction:

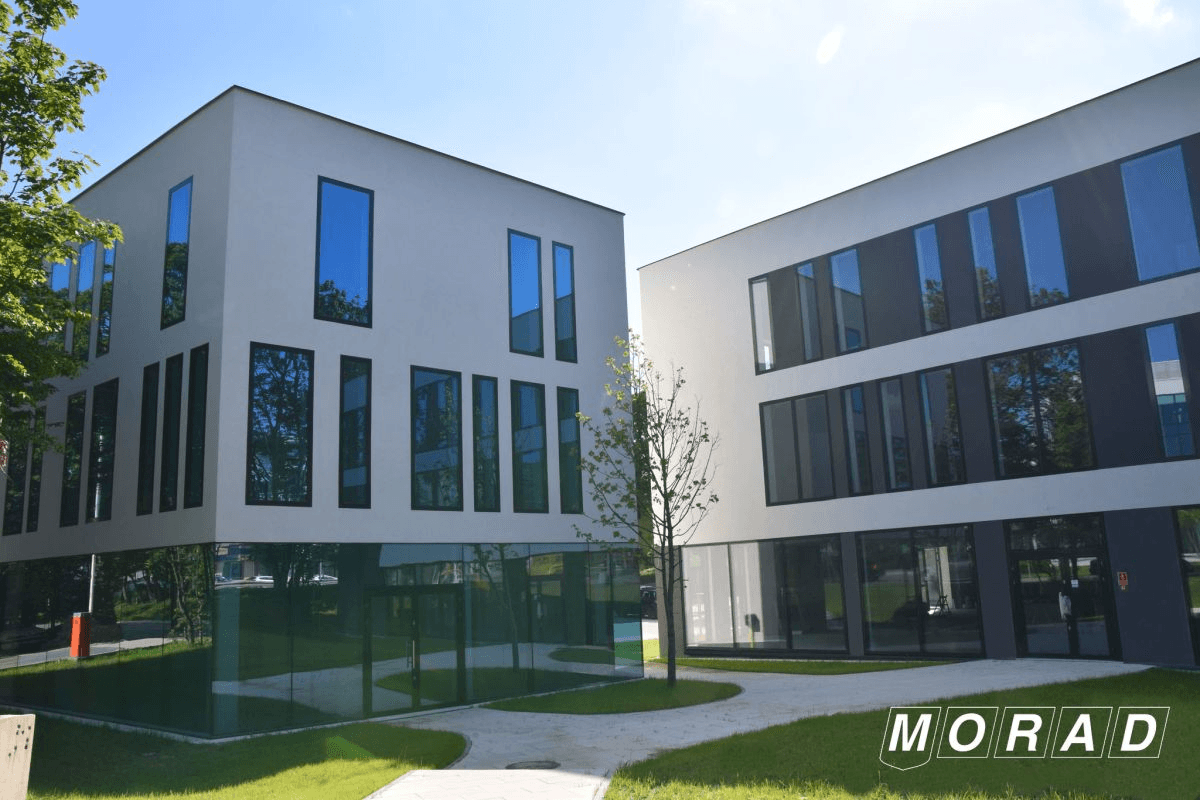

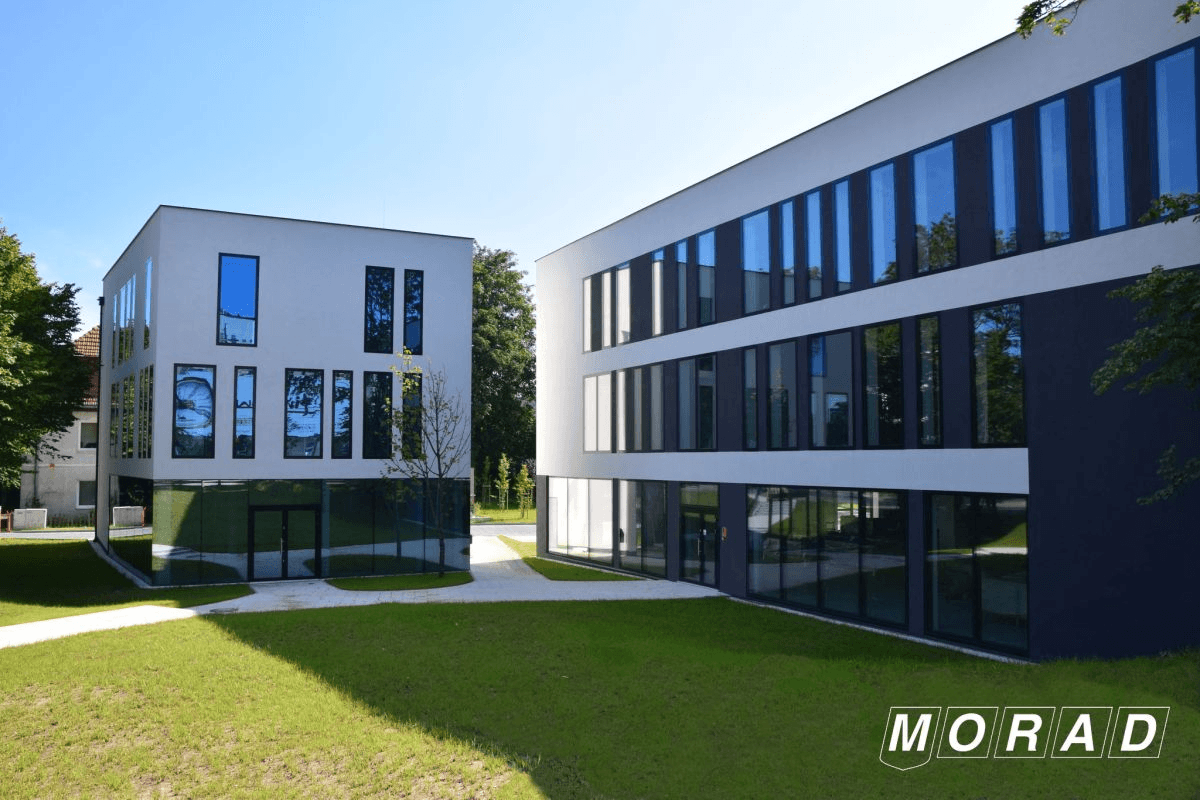

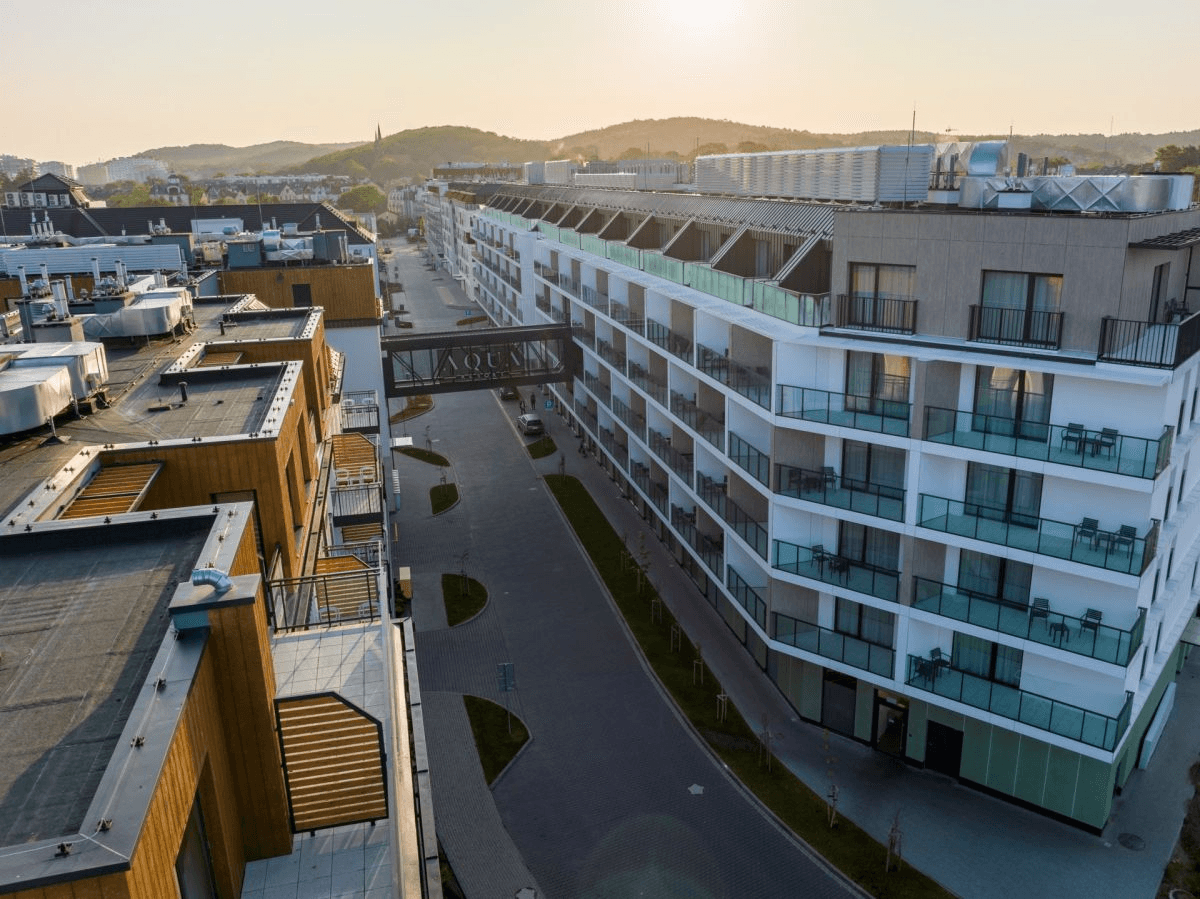

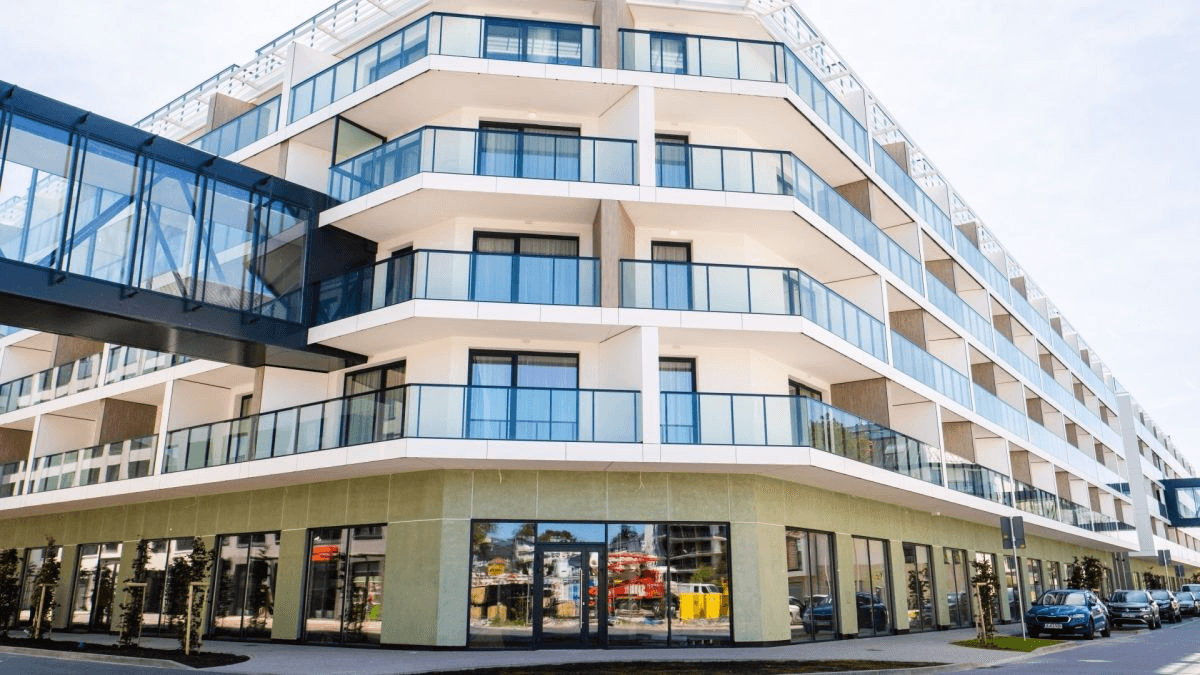

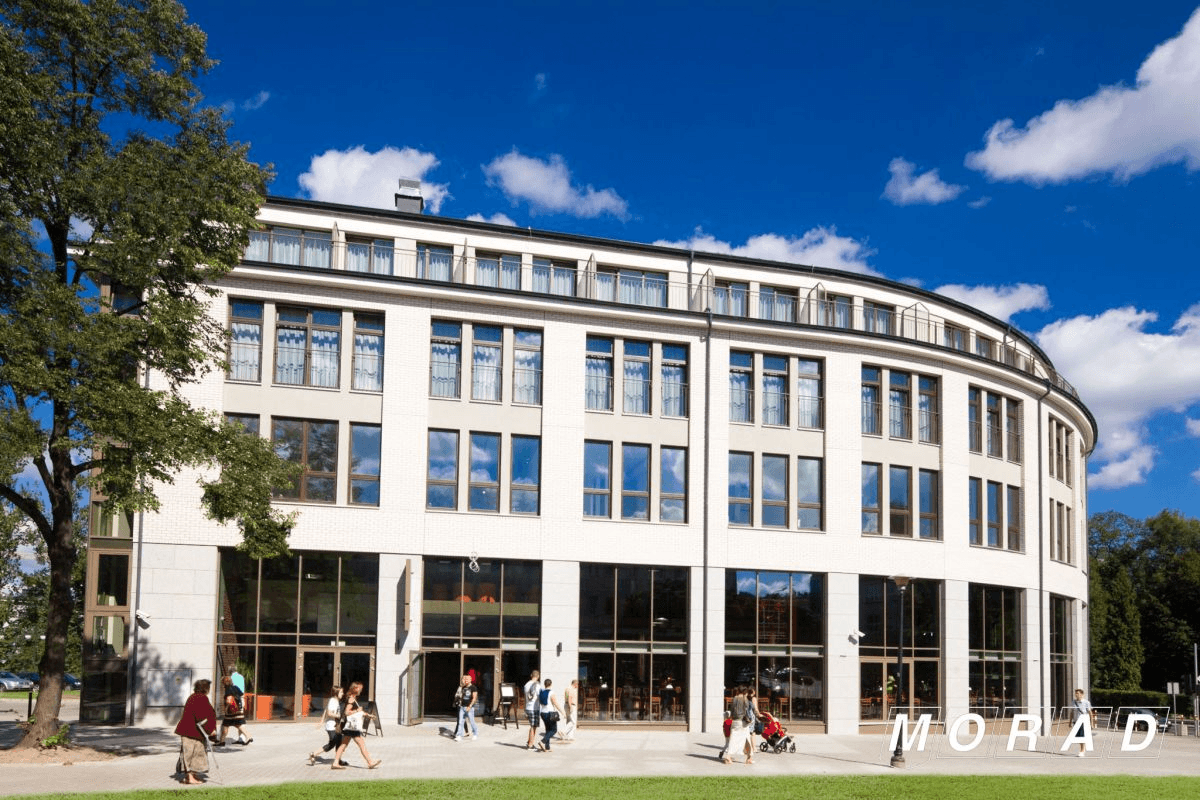

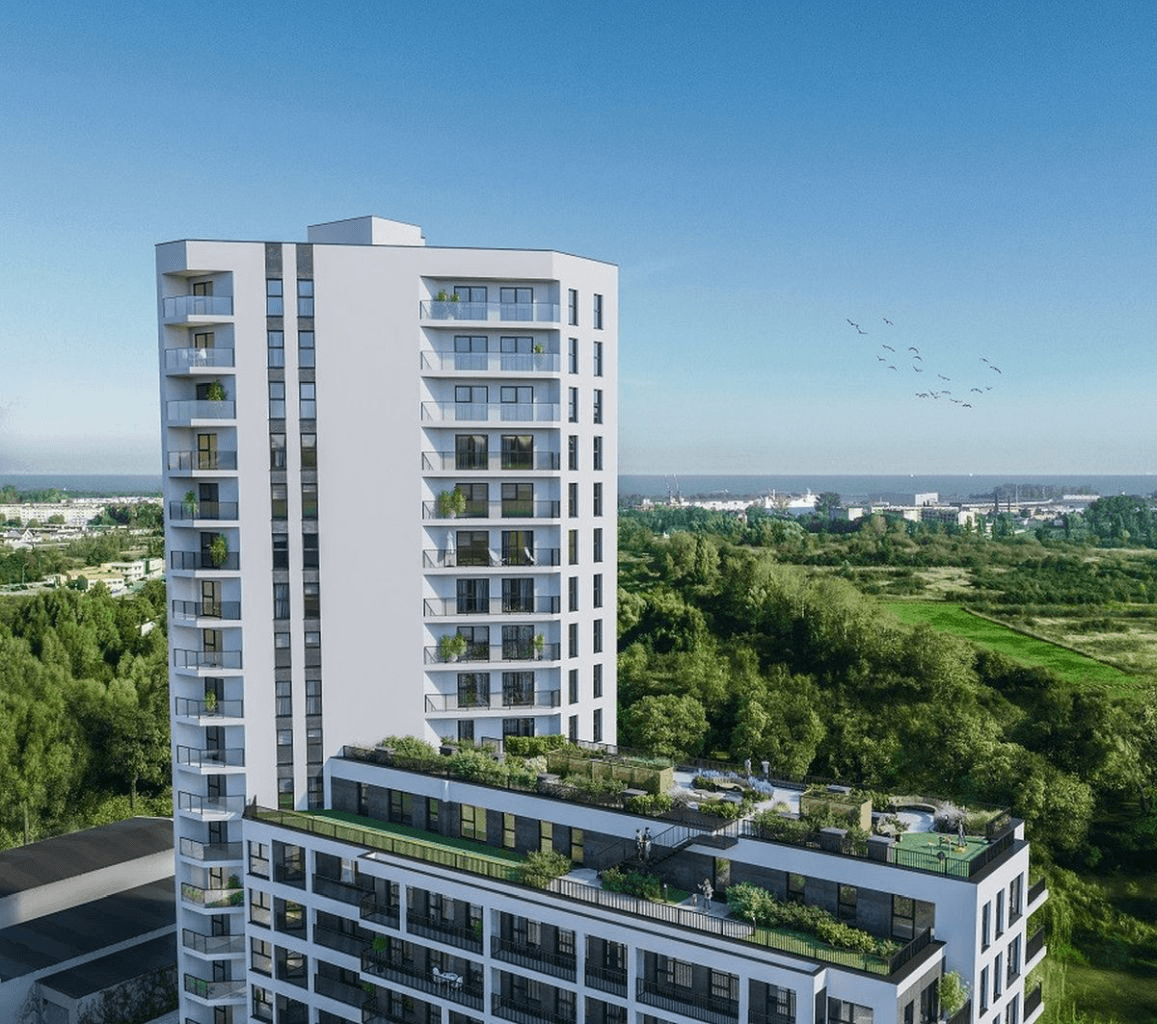

The AC-62 system is widely used in residential, commercial and public buildings where high thermal and acoustic insulation and a modern design are required. Thanks to its versatility and excellent technical performance, this system meets the expectations of even the most demanding architectural projects.

Further information and detailed technical specifications are available on the manufacturer’s website:
Morad – Aluminium Systems
