SANHA®-Press compression fitting system: reducers and tees

SANHA®-Press Chrome (16000 Series)

Chrome-plated system fittings made of copper and copper alloys for high-gloss chrome-plated copper pipes in accordance with PN-EN 1057, featuring black EPDM sealing rings, are the ideal solution for exposed heating systems.The SANHA®-Press Chrom for high-gloss chrome-plated copper pipes, intended for use in bathrooms, for example, offers the perfect combination of modern press technology with the decorative qualities of the installation, ensuring an aesthetic appearance and saving time during installation. The chrome-plated surface is easy to keep clean and requires no additional maintenance during use. The SANHA®-Press Chrom range includes all the non-threaded components required for a professional installation finish.

Comprehensive benefits

combipress =

+ Tool compatibility: the ability to crimp using crimping dies or crimping loops with the original SA, V and M profiles up to 54 mm, which eliminates installation errors and ensures a more secure connection.

+ Uncrimped and leaking: uncrimped fittings start to leak as soon as the system is filled for the first time, which allows the mistake to be rectified quickly.

+ Push & Stay: slip-resistant design to ensure easy and secure installation in any position

Quick installation, with no fire hazard:

The use of copper crimp connectors allows for quick and safe installation without the need for open flames, and therefore without any risk of fire.

High corrosion resistance:

The unique properties of copper, combined with the clean and uniform surface of the pipes and fittings, ensure a high level of corrosion resistance and meet the most stringent hygiene requirements.

Adapter threads compliant with PN-EN 10226 or PN-ISO 7/1, Type R and Rp.

A wide selection.

A wide range from 12 to 28 mm

Application:

• Heating
• Rainwater
• Inert gases

SANHA®-Press Gas (10000/11000 Series)

System compression fittings made of copper and copper alloys with yellow HNBR sealing O-rings for flammable gases in accordance with DVGW G 260 and for domestic gas installations in accordance with DVGW G 600 (TRGI) and DVFG-TRF 2012. For making connections on copper pipes in accordance with PN-EN 1057. The SANHA-Press Gas system has been tested in accordance with the requirements of DVGW G 5614 and INiG and has been approved by DVGW, ÖVGW and SVGW.In Poland, the system has received Technical Approval from the Oil and Gas Institute in Kraków. All fittings in the SANHA-Press Gas series are made of deoxidised copper (Cu-DHP) and are marked on the outside with the yellow symbol ‘PN 5/ MOP 5 - GT/PN 1’.

Comprehensive benefits

Combipress =

+ Tool compatibility: the ability to crimp using crimping dies or crimping loops with the original SA, V and M profiles up to 54 mm, which eliminates installation errors and ensures a more secure connection.

+ Uncrimped and leaking: uncrimped fittings start to leak as soon as the system is filled for the first time, which allows the mistake to be rectified quickly.

+ Push & Stay: slip-resistant design to ensure easy and secure installation in any position

Quick installation, with no fire hazard:

Connections using copper crimp fittings allow for quick and safe installation without the need for open flames, and therefore without any fire hazard. The crimp connection replaces brazing and guarantees the same fire resistance as AgCuZn and CuP solders.

High corrosion resistance:

The unique properties of copper, combined with the clean and uniform surface of the pipes and fittings, ensure a high level of corrosion resistance and meet the most stringent hygiene requirements.

Adapter threads compliant with PN-EN 10226 or PN-ISO 7/1 Type R and Rp.

A wide selection

A wide range from 12 to 54 mm

Application:

• Natural gas, liquefied petroleum gas (up to PN 5)

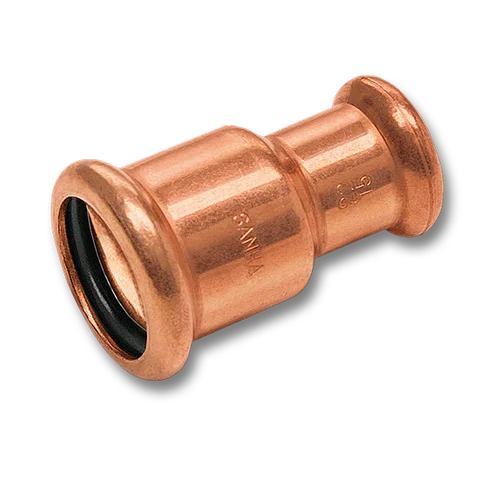

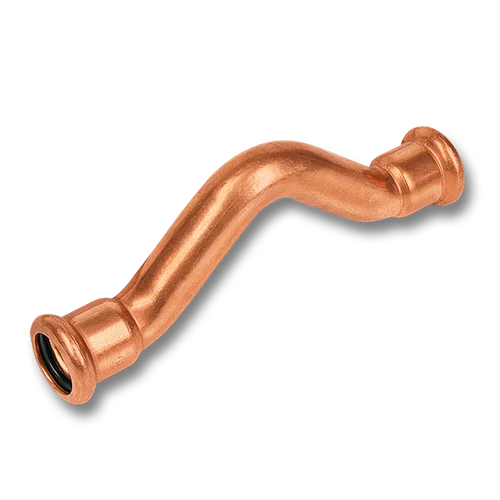

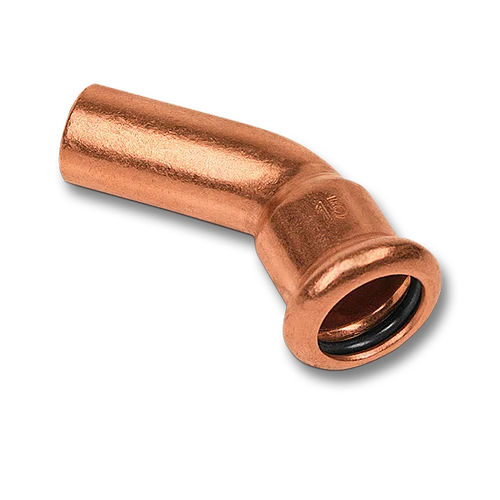

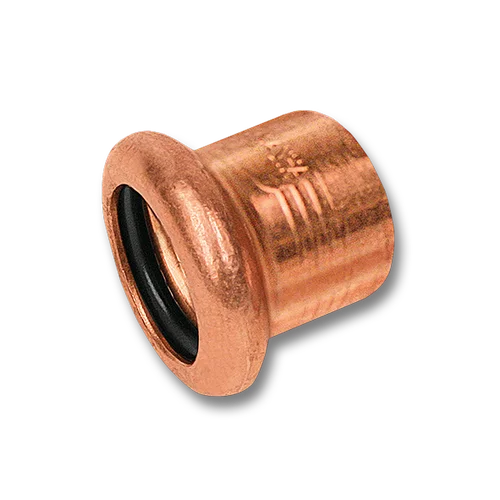

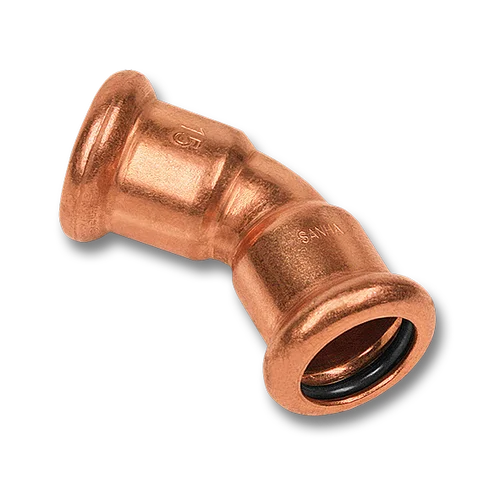

SANHA-Press 6000 Series

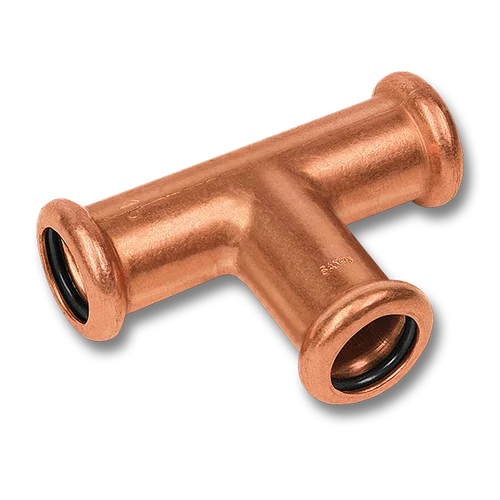

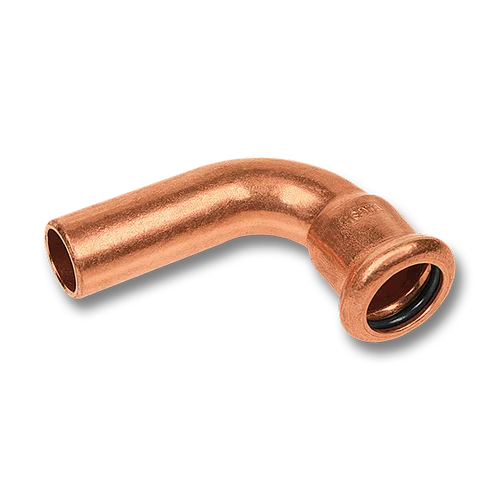

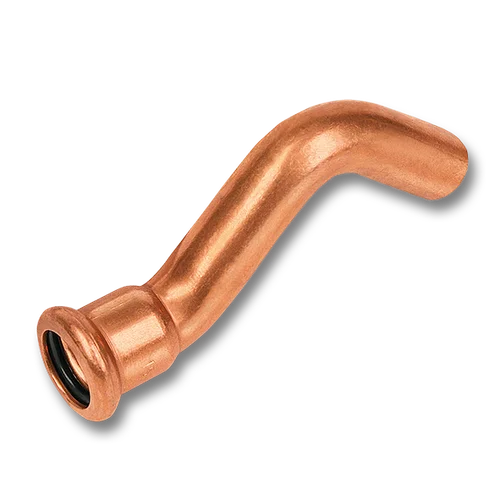

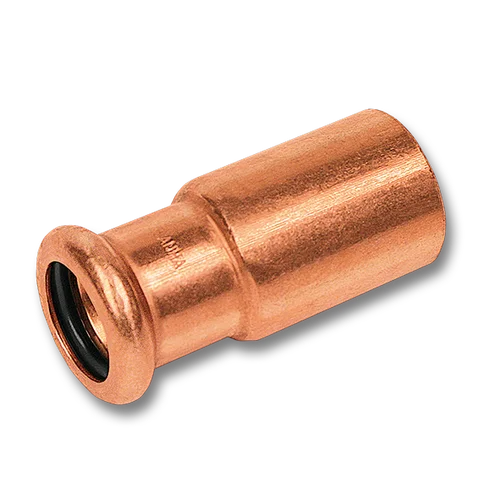

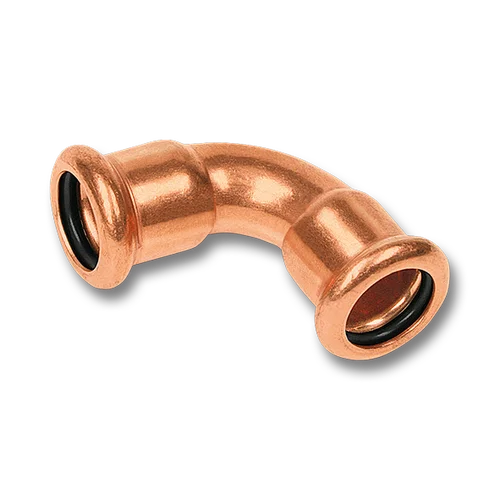

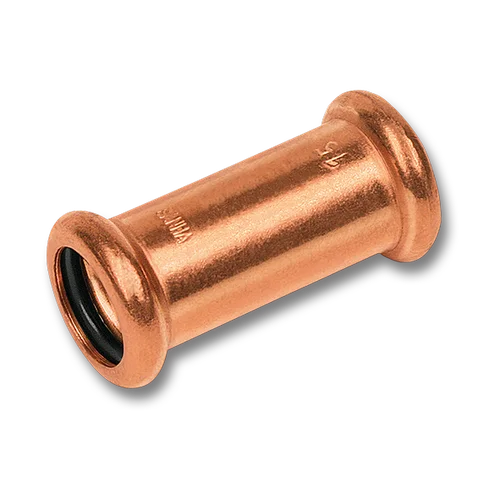

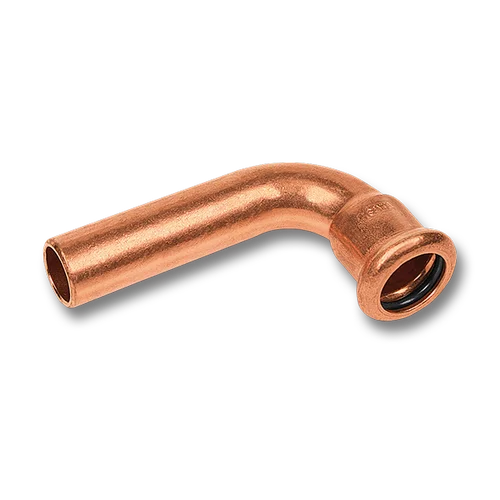

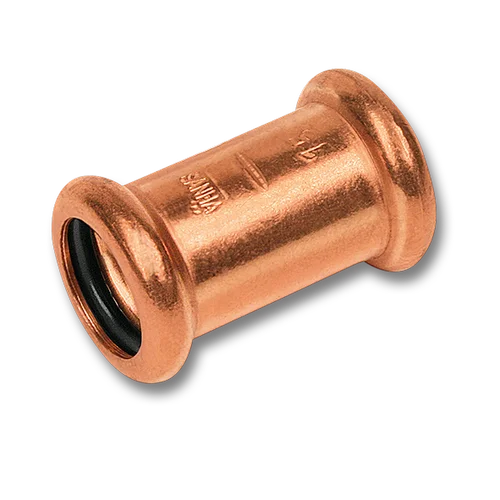

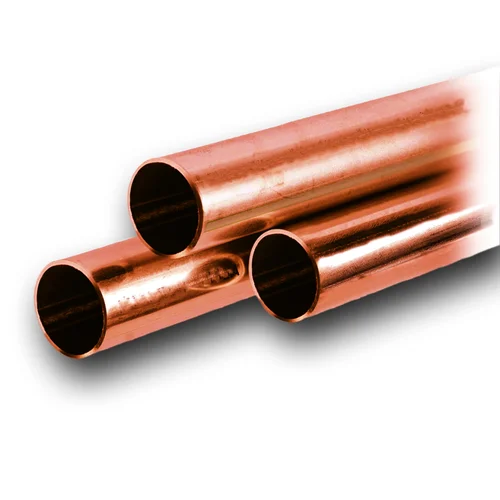

A system of copper compression fittings for making connections on copper pipes in accordance with PN-EN 1057 or DVGW sheet GW 392 for drinking water and heating installations. All series 6000 fittings are made of 99.9% phosphorus-deoxidised Cu-DHP copper and are tested in accordance with DVGW worksheet W 534 and approved by DVGW, ÖVGW, SVGW, ITB and PZH.

Comprehensive benefits

combipress =

+ Tool compatibility: the ability to crimp using crimping dies or crimping loops with the original SA, V and M profiles up to 54 mm, which eliminates installation errors and ensures a more secure connection.

+ Uncrimped and leaking: uncrimped fittings start to leak as soon as the system is filled for the first time, which allows the mistake to be rectified quickly.

+ Push & Stay: slip-resistant design to ensure easy and secure installation in any position

Quick installation, no fire hazard

Connections using copper compression fittings allow for quick and safe installation without the need for an open flame, and therefore without any risk of fire. Compression fittings replace soft soldering (water and heating systems) and hard soldering (gas systems).

High corrosion resistance

The unique properties of copper, combined with the clean and uniform surface of the pipes and fittings, ensure a high level of corrosion resistance and meet the most stringent hygiene requirements.

A wide selection

A comprehensive range from 12 to 108 mm, including 64 and 67 mm

Application:

• Drinking water
• Heating
• Rainwater
• Compressed air (Oil ≤ 25 mg/m³)
• Fire-extinguishing systems (wet)
• Shipbuilding
• Inert gases
• Chilled water systems

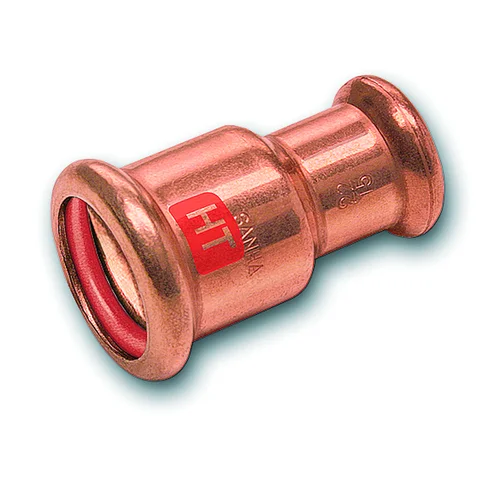

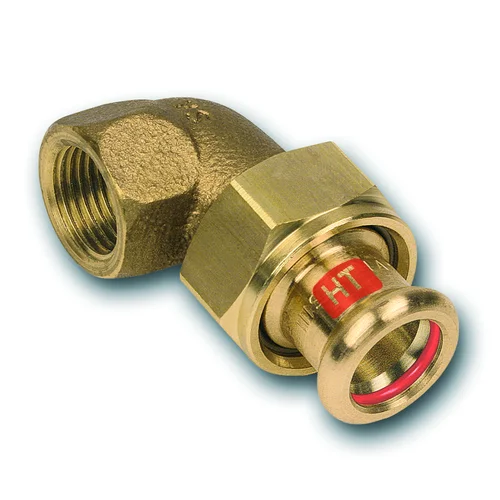

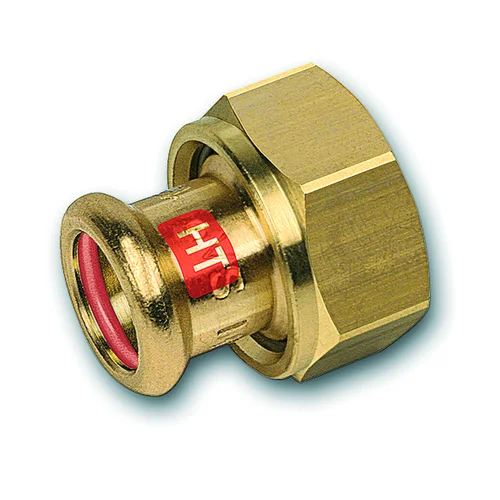

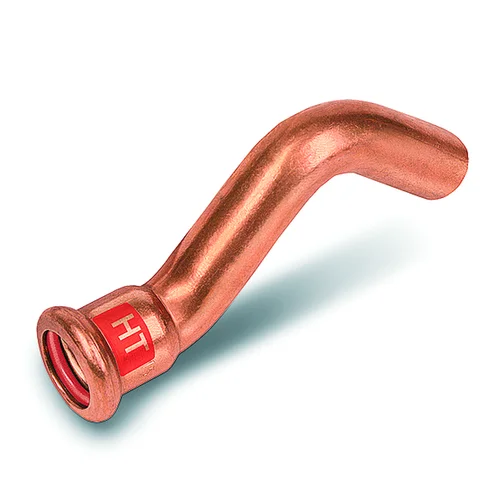

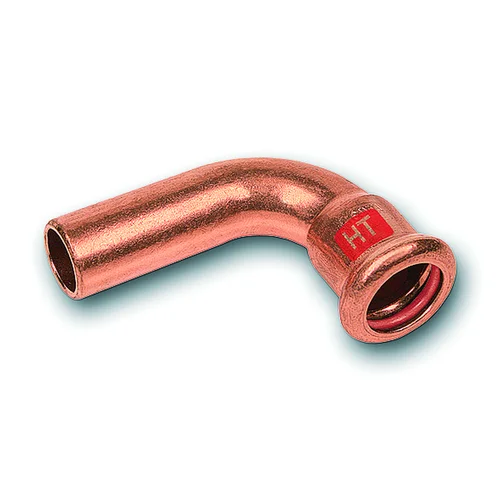

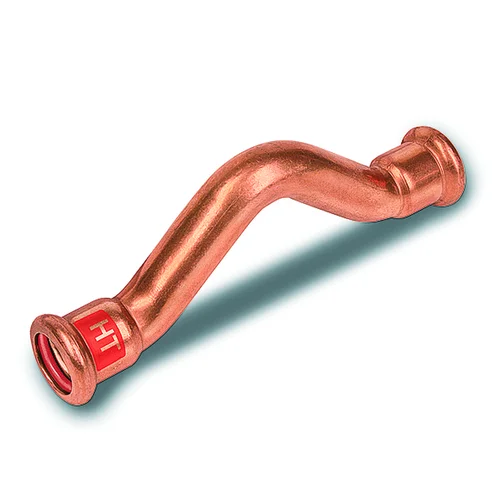

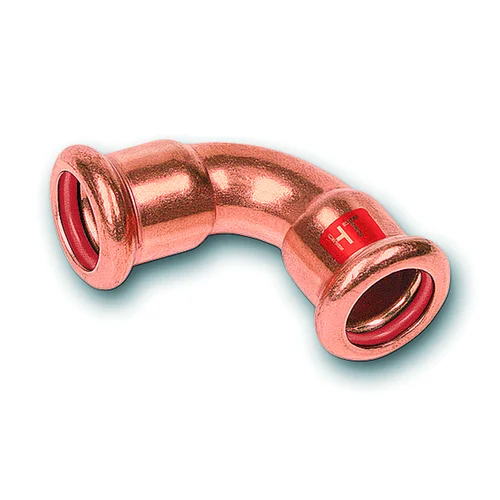

SANHA®-Press Solar (12000/13000 Series)

System compression fittings made of copper and copper alloys, with red FKM sealing O-rings, for solar installations and other high-temperature applications using copper pipes in accordance with PN-EN 1057.

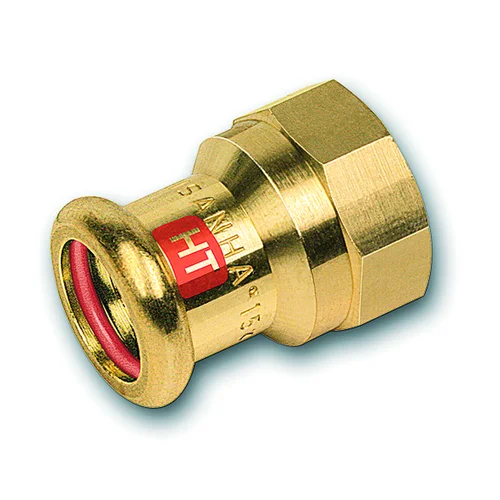

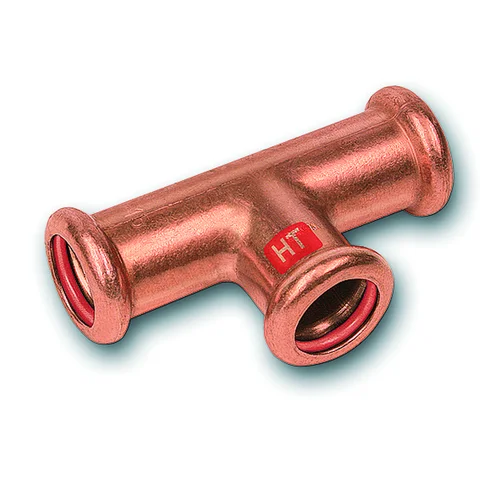

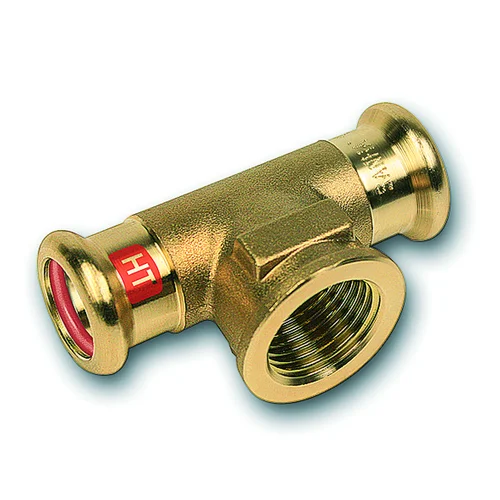

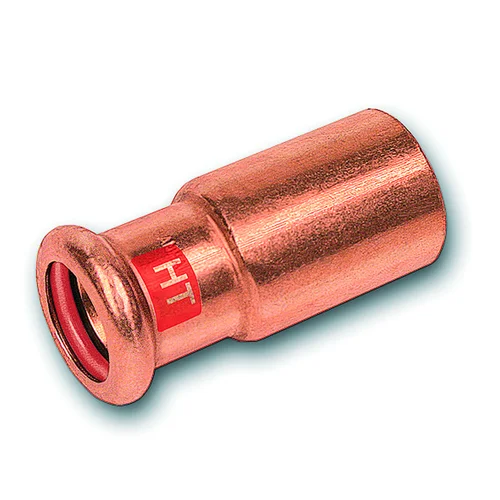

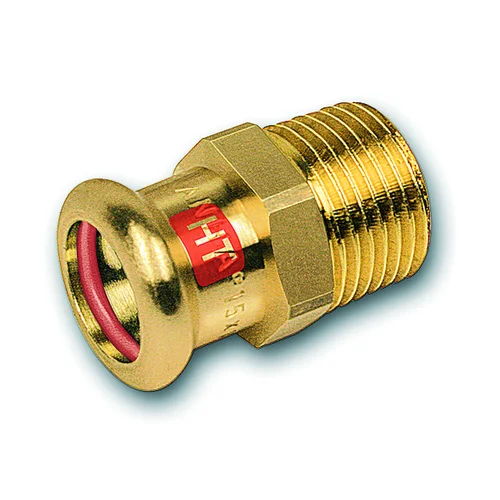

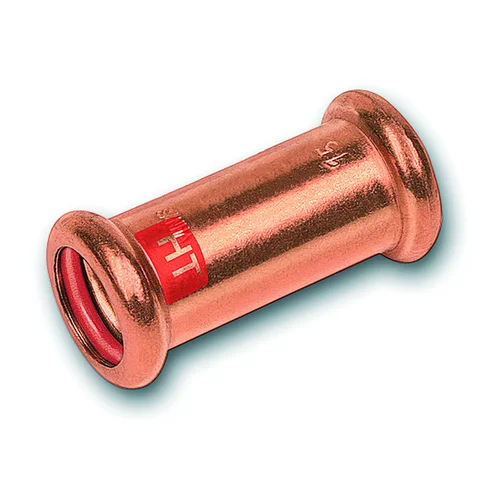

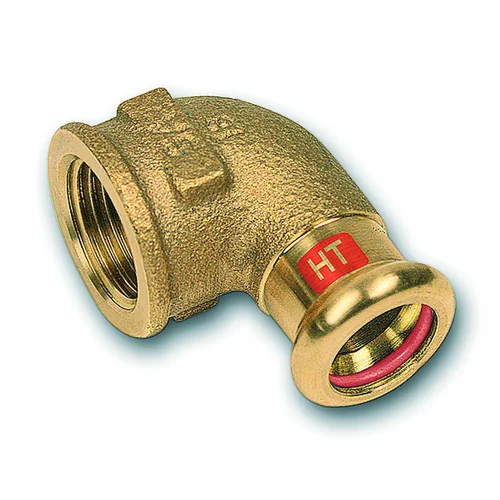

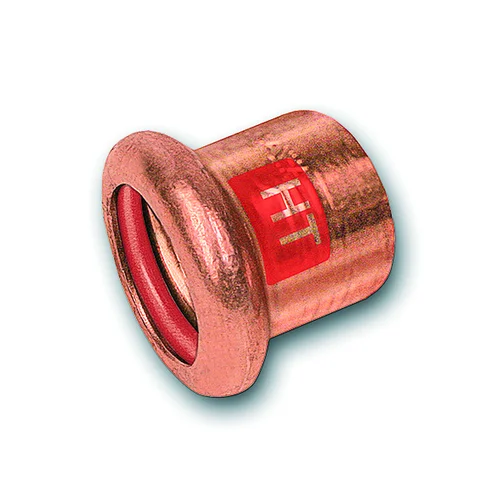

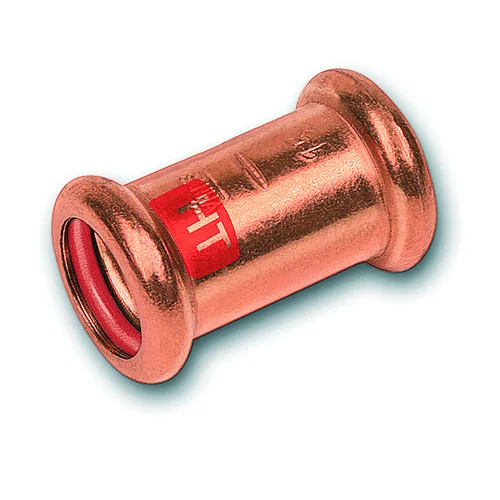

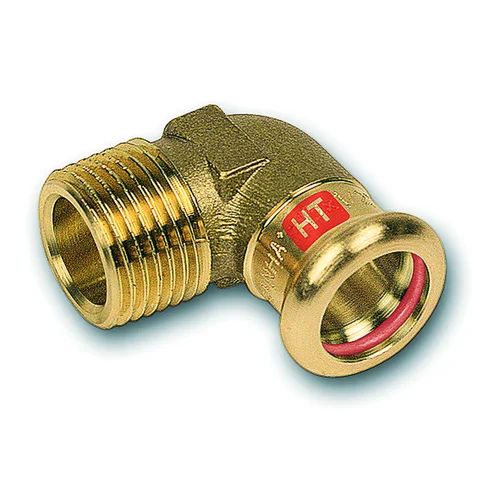

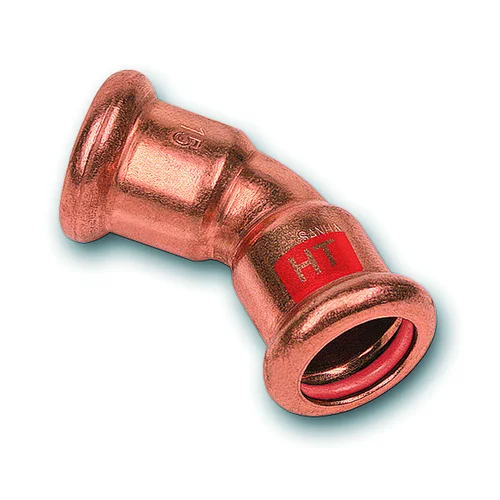

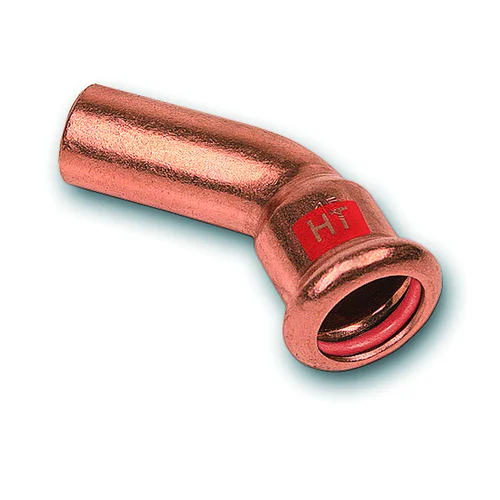

All fittings in the SANHA®-Press Solar series feature a clearly visible red ‘HT’ symbol on the outside and are approved for use at operating temperatures of up to 200 °C.

Comprehensive benefits

Combipress =

+ Tool compatibility: the ability to crimp using crimping dies or crimping loops with the original SA, V and M profiles up to 54 mm, which eliminates installation errors and ensures a more secure connection.

+ Uncrimped and leaking: uncrimped fittings start to leak as soon as the system is filled for the first time, which allows the mistake to be rectified quickly.

+ Push & Stay: slip-resistant design to ensure easy and secure installation in any position

Quick installation, with no fire hazard:

Connections made using copper crimp fittings allow for quick and safe installation without the need for open flames, and therefore without any fire hazard. The crimp connection replaces soldering and guarantees the same fire resistance as AgCuZn and CuP solders.

High corrosion resistance

:The unique properties of copper, combined with the clean and uniform surface of the pipes and fittings, ensure a high level of corrosion resistance and meet the most stringent hygiene requirements.

Adapter threads compliant with PN-EN 10226 or PN-ISO 7/1 Type R and Rp.

Application:

• Compressed air
• Inert gases
• Cold water systems
• Steam systems (on request)
• Central heating
• Fuel oil
• Diesel
• Solar system (vacuum and flat-plate collectors)
