Revisions

These are sewerage components widely used in all buildings with underfloor sewerage systems. The use of inspection chambers allows quick access to the underfloor sewerage system and easy cleaning.

The inspections are performed on steel grades 1.4301 (AISI304) and 1.4404 (AISI 316L). A seal installed between the screw-fastened cover and the body prevents water from entering.

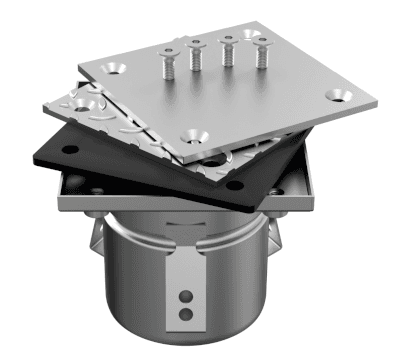

Two types of covers are available:

– smooth (G),
– grooved (R).

The edge finish allows for installation in any type of flooring. We offer inspection chambers for sewer pipes with a diameter of DN110 or greater.

ADVANTAGES OF REVISION

• are corrosion resistant,
• act as a barrier against odours from the sewer system,
• are easy to install,
• the dimensions of the inspection chambers offered are adapted to the diameter of the sewer pipe,

INSTALLATION OF INSPECTION

1. The sewer connection should be brought to the appropriate height.
2. The top of the inspection chamber during concreting should be 1-1.5 [mm] below the floor.

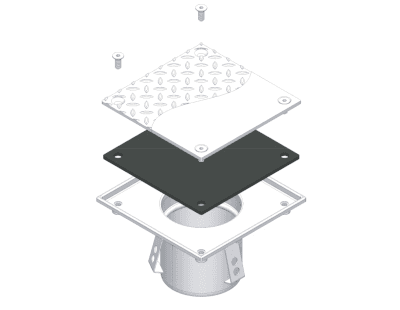

ELEMENTS OF THE REVIEW

• body,
• cover,
• fastening screws,
• gasket.
