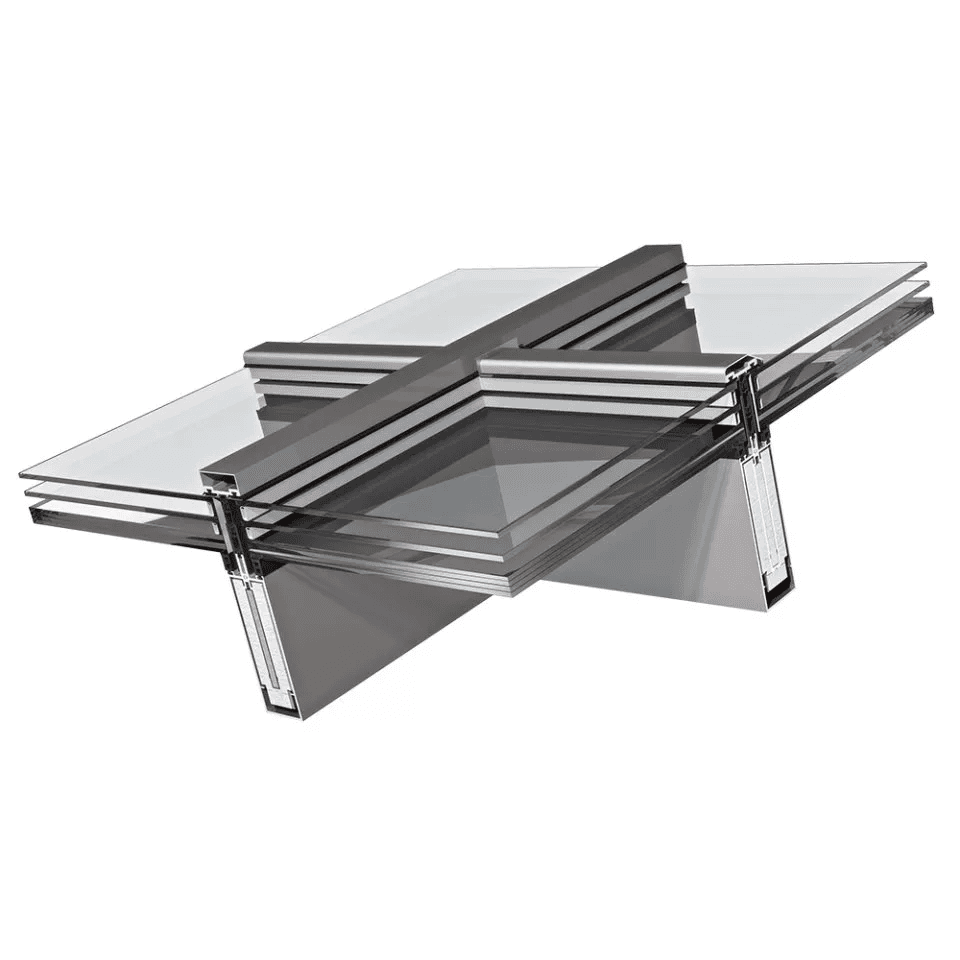

Facade elements for the PF152EI ESG system

Characteristics

Post and beam wall system with EI60 fire resistance (fire protection variant with point fixing of infill panels).

Characteristics

• the outer side of the façade forms a uniform surface
• a system of rotating "claws" reduces installation time
• silicone joints between glass panes create a tight and aesthetic finish
• expanding tapes protect thermal breaks and seal the joints between the structure and the glass
• post depth 85-196 mm
• the depth of the transoms is 91-201 mm
• possibility of using single and double-chamber fillings
• no restrictions on the width and height of the structure
• EI60 class structures secured with aluminosilicate inserts
• possibility of constructing multi-plane walls with all-glass or opaque corners


Technical specifications

Aluminium sections
EN AW-6060 according to PN-EN 573-3, condition T66 according to PN-EN 515

Depth of posts and post
bolts: 85–196 mm, bolts: 91–201 mm

Width of posts and rails:
52 mm

Fillings Double
glazing or opaque panels with fire resistance of 47–75 mm

Air permeability
class AE 2100

Water resistance
class RE 2700

Classification
Work No. 1561/19/R118NZP + Annex 1561/20/R136NZP + Annex 1561/21/R143NZP

Approvals and quality certificates

• Classification No. 04-01561/19/R126NZE
• 01561/16/R83NZP "Assessment of fire spread on walls and roof coverings of the PROCURAL PF152 system"
• 1561/19/R118NZP + Annex 1561/20/R136NZP + Annex 1561/21/R143NZP "Classification of the fire resistance of PROCURAL PF152 system curtain walls in full and partial configuration by PROCURAL Sp. z o.o."
